Oracle Database Integration logo

Oracle Database Integration

Connect your Oracle database to Datapad and get AI-powered insights that turn enterprise database data into strategic competitive advantage.

Database6 min setupSSL Encrypted

Prerequisites

  • Oracle Database - Oracle Database 12c or higher with your enterprise data
  • Database Access - Oracle user account with read permissions and connect privileges
  • Network Access - Database accessible through TNS listener or direct connection
  • Oracle Client - Oracle client libraries for secure connectivity
  • Connection Methods

    Choose the connection method that fits your Oracle infrastructure.

    TNS Connection

    Connect using TNS names and Oracle Net Services configuration.

    Direct Connection

    Direct connection using host, port, and service name.

    Oracle Cloud

    Connect to Oracle Autonomous Database or Oracle Cloud Infrastructure.

    Connection Guide

    Step 1: Access Oracle Integration

    Navigate to Integrations in Datapad and select Oracle Database:

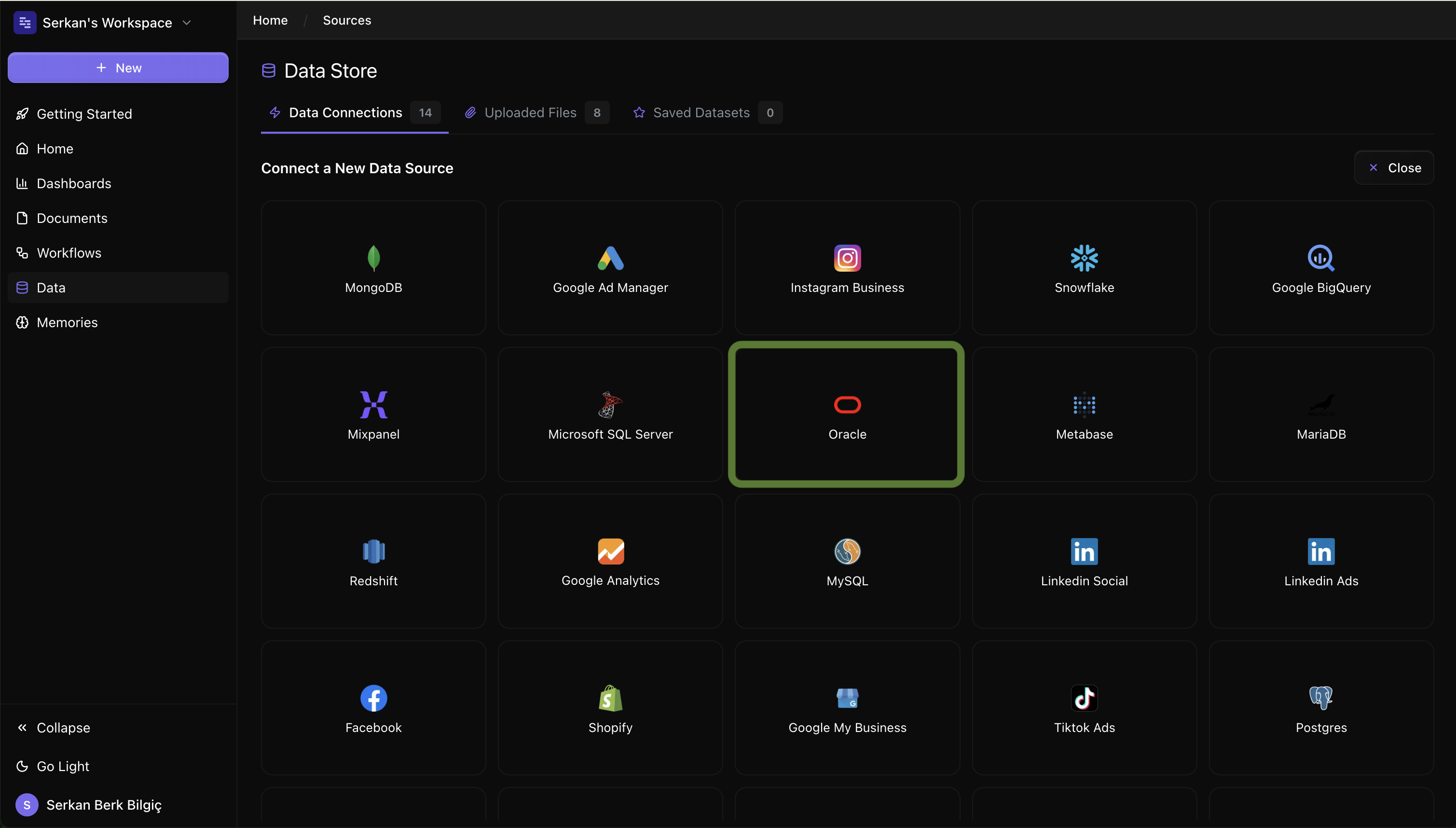

    Oracle connect screen on Datapad UI

    Step 2: Enter Connection Details

    Fill in your Oracle connection information:

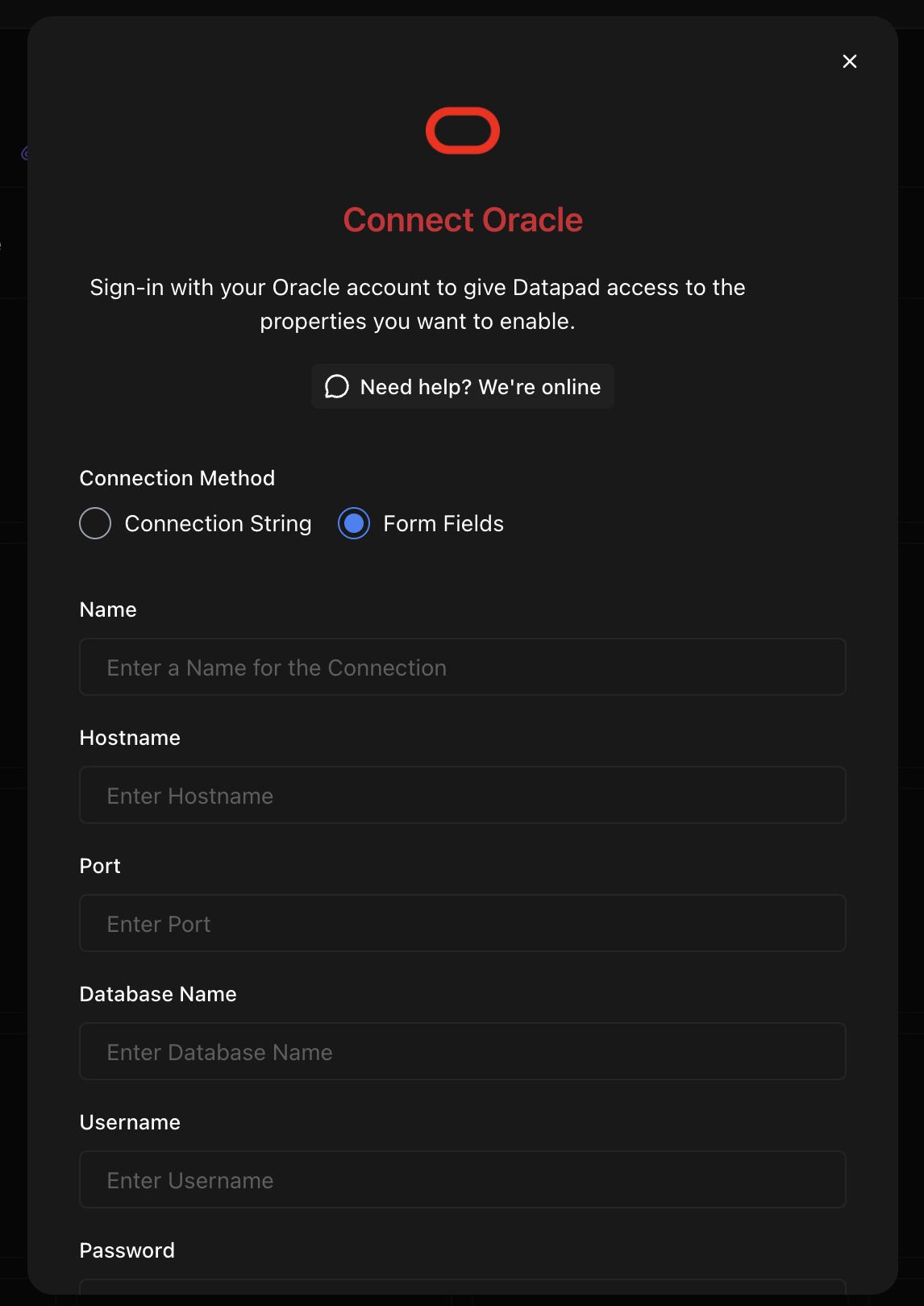

    Oracle connection form

    Required Fields:

    • Host/Server Name
    • Port (default: 1521)
    • Service Name or SID
    • Username
    • Password
    • Connection Type (TNS/Direct)
    For Oracle Cloud Autonomous Database, use the connection string from your cloud console.

    Step 3: Configure Advanced Settings

    Set Oracle-specific connection options:

    Oracle advanced configuration

    Advanced Options:

    • SSL/TLS Encryption
    • Connection Pool Settings
    • Query Timeout
    • Schema Selection

    Create Read-Only User (Recommended)

    For security, create a dedicated user with read-only permissions:

    -- Create a new user for Datapad
    CREATE USER datapad_readonly IDENTIFIED BY "SecurePassword123!";

    -- Grant basic connection privileges
    GRANT CREATE SESSION TO datapad_readonly;

    -- Grant read access to specific schemas
    GRANT SELECT ON your_schema.your_table TO datapad_readonly;
    -- Or grant read access to all tables in a schema
    GRANT SELECT ANY TABLE TO datapad_readonly;

    -- Grant access to system views for metadata
    GRANT SELECT ON DBA_TABLES TO datapad_readonly;
    GRANT SELECT ON DBA_TAB_COLUMNS TO datapad_readonly;
    GRANT SELECT ON DBA_CONSTRAINTS TO datapad_readonly;

    -- For Oracle 12c+ container databases
    ALTER USER datapad_readonly SET CONTAINER_DATA=ALL;

  • Replace schema and table names with your actual objects. Use strong passwords that meet Oracle security requirements and your organization's policies.
  • Example Queries

    Here are some example questions you can ask once your Oracle data is connected:

    "Show me the top revenue-generating products across all business units"
    "What's our quarterly financial performance by region and division?"
    "How many transactions are processed per hour during peak times?"
    "Which customers have the highest lifetime value in the enterprise segment?"
    "Show me supply chain efficiency metrics by supplier and location"
    "What's the trend in operational costs over the last fiscal year?"

    💬 Oracle Query Tips

  • Include schema names for precise targeting in complex enterprise environments
  • Use Oracle-specific analytical functions for advanced calculations
  • Ask about hierarchical queries and recursive data structures
  • Request performance analysis using Oracle execution plans
  • Behind the Scenes

    Datapad connects to your Oracle database using Oracle's native connectivity protocols and generates optimized Oracle SQL that leverages advanced features like analytical functions, hierarchical queries, and Oracle-specific performance optimizations. Our AI understands Oracle's enterprise features and generates queries that take advantage of Oracle's powerful analytical capabilities.

    Troubleshooting

    Connection failed

    If Oracle connection fails:

    • Verify the Oracle listener is running and accepting connections
    • Check that the TNS names configuration is correct
    • Ensure the Oracle client libraries are properly installed
    • Test connectivity using SQL*Plus or Oracle SQL Developer

    TNS resolution errors

    If TNS name resolution fails:

    • Verify the tnsnames.ora file contains the correct service definition
    • Check that the ORACLE_HOME and TNS_ADMIN environment variables are set
    • Ensure the Oracle Net Services are properly configured
    • Try using a direct connection instead of TNS names

    Authentication failed

    If authentication fails:

    • Verify the username and password are correct
    • Check if the user account is locked or expired
    • Ensure the user has CREATE SESSION privilege
    • Try connecting with Oracle SQL Developer using the same credentials

    Performance issues

    If queries are running slowly:

    • Check Oracle execution plans for query optimization opportunities
    • Verify that proper indexes exist on frequently queried columns
    • Consider using Oracle hints for query optimization
    • Monitor Oracle AWR reports for system performance analysis

    Privilege errors

    If you encounter privilege errors:

    • Verify the user has SELECT permissions on target tables and views
    • Check that system view access is granted for metadata queries
    • Ensure proper role assignments for read-only access
    • Contact your Oracle DBA for additional privilege grants if needed
